Grid declaration

December 25, 2021December 25, 2021 Rupesh 0 Comments

Use our powerful mobile-first flexbox grid to build layouts of all shapes and sizes thanks to a twelve-column system, six default responsive tiers, Sass variables and mixins, and dozens of predefined classes.

Example

Bootstrap’s grid system uses a series of containers, rows, and columns to layout and aligns content. It’s built with a flexbox and is fully responsive. Below is an example and an in-depth explanation of how the grid system comes together.

<div class="container">
  <div class="row">
    <div class="col">
      Column
    </div>
    <div class="col">
      Column
    </div>
    <div class="col">
      Column
    </div>
  </div>
</div>

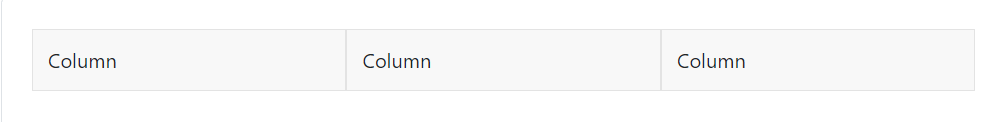

The above example creates three equal-width columns across all devices and viewports using our predefined grid classes. Those columns are centered in the page with the parent .container.

Grid options

Bootstrap’s grid system can adapt across all six default breakpoints, and any breakpoints you customize. The six default grid tiers are as follow:

Extra small (xs)
Small (sm)
Medium (md)
Large (lg)
Extra large (xl)
Extra extra large (xxl)

As noted above, each of these breakpoints has their own container, unique class prefix, and modifiers. Here’s how the grid changes across these breakpoints:

xs <576px	sm ≥576px	md ≥768px	lg ≥992px	xl ≥1200px	xxl ≥1400px
Container `max-width`	None (auto)	540px	720px	960px	1140px	1320px
Class prefix	`.col-`	`.col-sm-`	`.col-md-`	`.col-lg-`	`.col-xl-`	`.col-xxl-`
# of columns	12
Gutter width	1.5rem (.75rem on left and right)
Custom gutters	Yes
Nestable	Yes
Column ordering	Yes

Auto-layout columns

Utilize breakpoint-specific column classes for easy column sizing without an explicit numbered class like .col-sm-6.

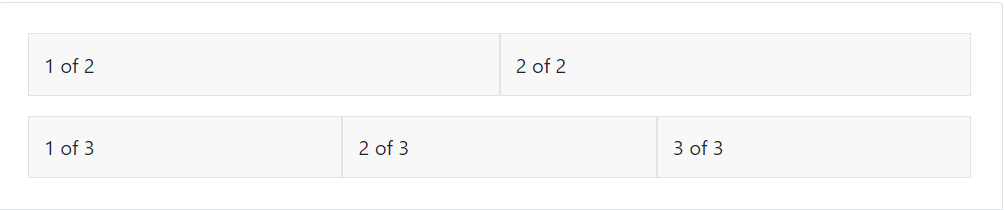

Equal-width

For example, here are two grid layouts that apply to every device and viewport, from xs to xxl. Add any number of unit-less classes for each breakpoint you need and every column will be the same width.

<div class="container">
  <div class="row">
    <div class="col">
      1 of 2
    </div>
    <div class="col">
      2 of 2
    </div>
  </div>
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col">
      2 of 3
    </div>
    <div class="col">
      3 of 3
    </div>
  </div>
</div>

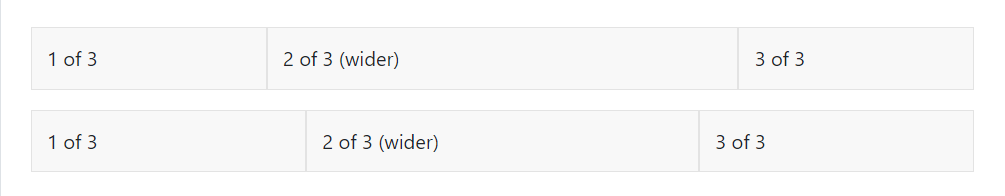

Setting one column width

Auto-layout for flexbox grid columns also means you can set the width of one column and have the sibling columns automatically resize around it. You may use predefined grid classes (as shown below), grid mixins, or inline widths. Note that the other columns will resize no matter the width of the center column.

<div class="container">
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col-6">
      2 of 3 (wider)
    </div>
    <div class="col">
      3 of 3
    </div>
  </div>
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col-5">
      2 of 3 (wider)
    </div>
    <div class="col">
      3 of 3
    </div>
  </div>
</div>

Variable width content

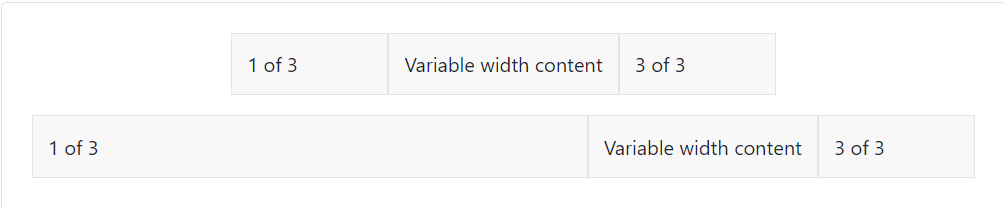

Use col-{breakpoint}-auto classes to size columns based on the natural width of their content.

<div class="container">
  <div class="row justify-content-md-center">
    <div class="col col-lg-2">
      1 of 3
    </div>
    <div class="col-md-auto">
      Variable width content
    </div>
    <div class="col col-lg-2">
      3 of 3
    </div>
  </div>
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col-md-auto">
      Variable width content
    </div>
    <div class="col col-lg-2">
      3 of 3
    </div>
  </div>
</div>

Responsive classes

Bootstrap’s grid includes six tiers of predefined classes for building complex responsive layouts. Customize the size of your columns on extra small, small, medium, large, or extra large devices however you see fit.

All breakpoints

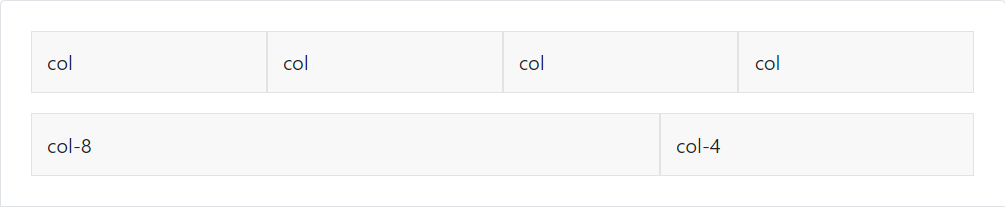

For grids that are the same from the smallest of devices to the largest, use the .col and .col-* classes. Specify a numbered class when you need a particularly sized column; otherwise, feel free to stick to .col.

<div class="container">
  <div class="row">
    <div class="col">col</div>
    <div class="col">col</div>
    <div class="col">col</div>
    <div class="col">col</div>
  </div>
  <div class="row">
    <div class="col-8">col-8</div>
    <div class="col-4">col-4</div>
  </div>
</div>

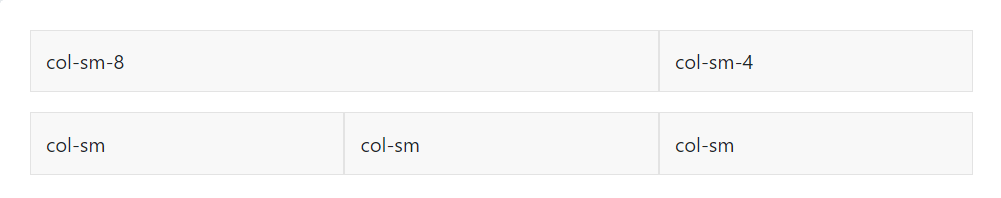

Stacked to horizontal

Using a single set of .col-sm-* classes, you can create a basic grid system that starts out stacked and becomes horizontal at the small breakpoint (sm).

<div class="container">
  <div class="row">
    <div class="col-sm-8">col-sm-8</div>
    <div class="col-sm-4">col-sm-4</div>
  </div>
  <div class="row">
    <div class="col-sm">col-sm</div>
    <div class="col-sm">col-sm</div>
    <div class="col-sm">col-sm</div>
  </div>
</div>

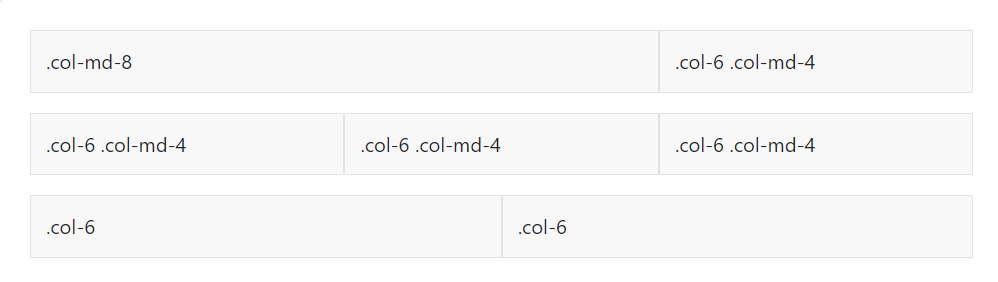

Mix and match

Don’t want your columns to simply stack in some grid tiers? Use a combination of different classes for each tier as needed. See the example below for a better idea of how it all works.

<div class="container">
  <!-- Stack the columns on mobile by making one full-width and the other half-width -->
  <div class="row">
    <div class="col-md-8">.col-md-8</div>
    <div class="col-6 col-md-4">.col-6 .col-md-4</div>
  </div>

  <!-- Columns start at 50% wide on mobile and bump up to 33.3% wide on desktop -->
  <div class="row">
    <div class="col-6 col-md-4">.col-6 .col-md-4</div>
    <div class="col-6 col-md-4">.col-6 .col-md-4</div>
    <div class="col-6 col-md-4">.col-6 .col-md-4</div>
  </div>

  <!-- Columns are always 50% wide, on mobile and desktop -->
  <div class="row">
    <div class="col-6">.col-6</div>
    <div class="col-6">.col-6</div>
  </div>
</div>

Row columns

Use the responsive .row-cols-* classes to quickly set the number of columns that best render your content and layout. Whereas normal .col-* classes apply to the individual columns (e.g., .col-md-4), the row columns classes are set on the parent .row as a shortcut. With .row-cols-auto you can give the columns their natural width.

Use these row columns classes to quickly create basic grid layouts or to control your card layouts.

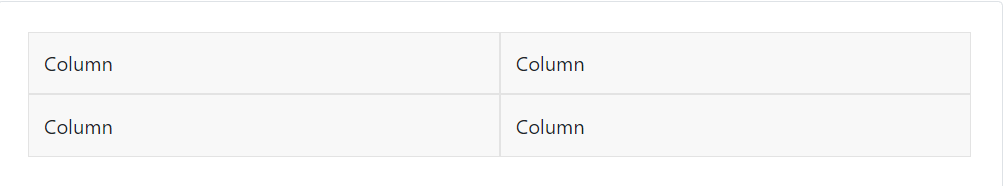

<div class="container">
  <div class="row row-cols-2">
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col">Column</div>
  </div>
</div>

<div class="container">

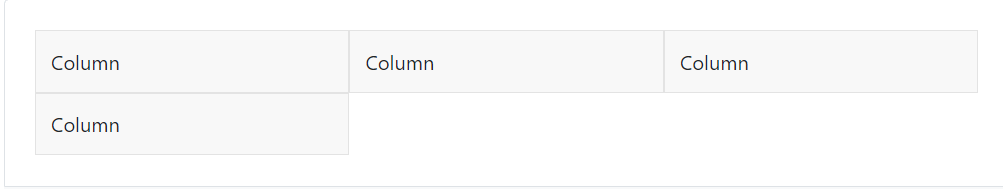

  <div class="row row-cols-3">
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col">Column</div>
  </div>
</div>

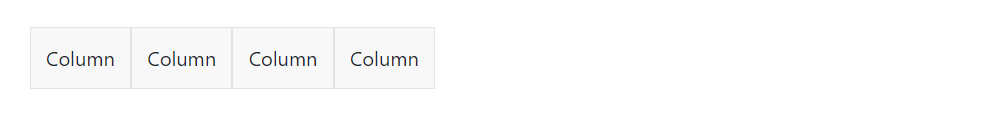

<div class="container">
  <div class="row row-cols-auto">
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col">Column</div>
  </div>
</div>

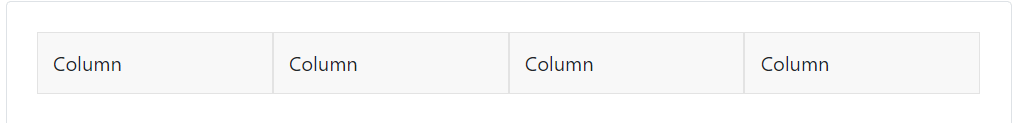

<div class="container">

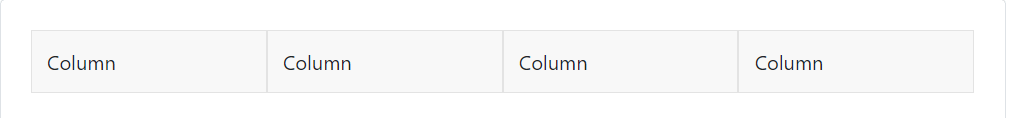

  <div class="row row-cols-4">
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col">Column</div>
  </div>
</div>

<div class="container">
  <div class="row row-cols-4">
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col-6">Column</div>
    <div class="col">Column</div>
  </div>
</div>

<div class="container">
  <div class="row row-cols-1 row-cols-sm-2 row-cols-md-4">
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col">Column</div>
    <div class="col">Column</div>
  </div>
</div>

You can also use the accompanying Sass mixin, row-cols():

.element {
  // Three columns to start
  @include row-cols(3);

  // Five columns from medium breakpoint up
  @include media-breakpoint-up(md) {
    @include row-cols(5);
  }
}

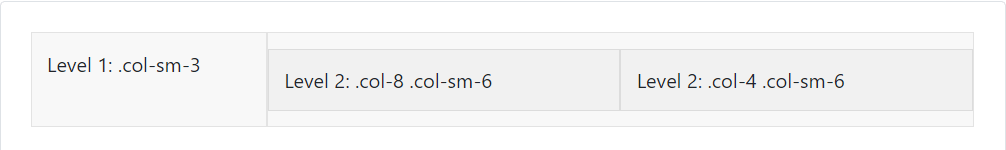

Nesting

To nest your content with the default grid, add a new .row and set of .col-sm-* columns within an existing .col-sm-* column. Nested rows should include a set of columns that add up to 12 or fewer (it is not required that you use all 12 available columns).

<div class="container">
  <div class="row">
    <div class="col-sm-3">
      Level 1: .col-sm-3
    </div>
    <div class="col-sm-9">
      <div class="row">
        <div class="col-8 col-sm-6">
          Level 2: .col-8 .col-sm-6
        </div>
        <div class="col-4 col-sm-6">
          Level 2: .col-4 .col-sm-6
        </div>
      </div>
    </div>
  </div>
</div>

Sass

When using Bootstrap’s source Sass files, you have the option of using Sass variables and mixins to create custom, semantic, and responsive page layouts. Our predefined grid classes use these same variables and mixins to provide a whole suite of ready-to-use classes for fast responsive layouts.

Variables

Variables and maps determine the number of columns, the gutter width, and the media query point at which to begin floating columns. We use these to generate the predefined grid classes documented above, as well as for the custom mixins listed below.

$grid-columns:      12;
$grid-gutter-width: 1.5rem;

$grid-breakpoints: (
  xs: 0,
  sm: 576px,
  md: 768px,
  lg: 992px,
  xl: 1200px,
  xxl: 1400px
);

$container-max-widths: (
  sm: 540px,
  md: 720px,
  lg: 960px,
  xl: 1140px,
  xxl: 1320px
);

Mixins

Mixins are used in conjunction with the grid variables to generate semantic CSS for individual grid columns.

// Creates a wrapper for a series of columns
@include make-row();

// Make the element grid-ready (applying everything but the width)
@include make-col-ready();

// Without optional size values, the mixin will create equal columns (similar to using .col)
@include make-col();
@include make-col($size, $columns: $grid-columns);

// Offset with margins
@include make-col-offset($size, $columns: $grid-columns);

Example usage

You can modify the variables to your own custom values, or just use the mixins with their default values. Here’s an example of using the default settings to create a two-column layout with a gap between.

.example-container {
  @include make-container();
  // Make sure to define this width after the mixin to override
  // `width: 100%` generated by `make-container()`
  width: 800px;
}

.example-row {
  @include make-row();
}

.example-content-main {
  @include make-col-ready();

  @include media-breakpoint-up(sm) {
    @include make-col(6);
  }
  @include media-breakpoint-up(lg) {
    @include make-col(8);
  }
}

.example-content-secondary {
  @include make-col-ready();

  @include media-breakpoint-up(sm) {
    @include make-col(6);
  }
  @include media-breakpoint-up(lg) {
    @include make-col(4);
  }
}

<div class="example-container">
  <div class="example-row">
    <div class="example-content-main">Main content</div>
    <div class="example-content-secondary">Secondary content</div>
  </div>
</div>

Customizing the grid

Using our built-in grid Sass variables and maps, it’s possible to completely customize the predefined grid classes. Change the number of tiers, the media query dimensions, and the container widths—then recompile.

Columns and gutters

The number of grid columns can be modified via Sass variables. $grid-columns is used to generate the widths (in percent) of each individual column while $grid-gutter-width sets the width for the column gutters.

$grid-columns: 12 !default;
$grid-gutter-width: 1.5rem !default;

Grid tiers

Moving beyond the columns themselves, you may also customize the number of grid tiers. If you wanted just four grid tiers, you’d update the $grid-breakpoints and $container-max-widths to something like this:

$grid-breakpoints: (
  xs: 0,
  sm: 480px,
  md: 768px,
  lg: 1024px
);

$container-max-widths: (
  sm: 420px,
  md: 720px,
  lg: 960px
);

When making any changes to the Sass variables or maps, you’ll need to save your changes and recompile. Doing so will output a brand new set of predefined grid classes for column widths, offsets, and ordering. Responsive visibility utilities will also be updated to use the custom breakpoints. Make sure to set grid values in px (not rem, em, or %).
